Program Flow

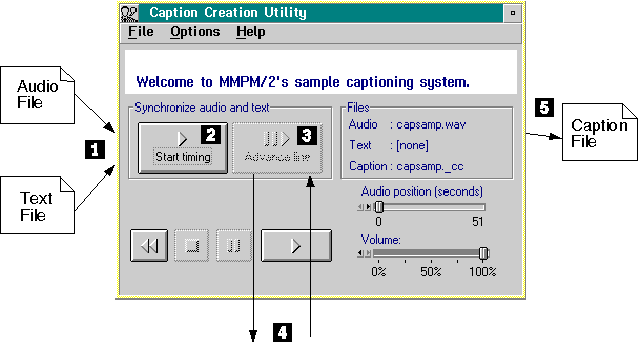

The following figure illustrates the interaction between the audio, text, and caption file with the Caption Creation Utility program. Source code for the Caption Creation Utility is located in the \TOOLKIT\SAMPLES\MM\CAPTION subdirectory.

• Select an audio file and a corresponding text file to synchronize with the selected audio file. For example, you might want to synchronize the text of a poem with an audio file of someone reading the poem. When you open a text file, the first line of text appears at the bottom of the text window. The first line of the text file selected in the example shown in the previous figure is "Welcome to MMPM/2's sample captioning system."

• In order to begin the synchronization process, you must select Start timing. The audio file begins to play and Advance line becomes enabled.

• Select Advance line to scroll to the next line of text. The next line of text is scrolled and appears in the text window.

• When you select Advance line, the Caption Creation Utility program passes the device ID, the MCI_STATUS command with the MCI_STATUS_ITEM flag, and the MCI_STATUS_PARMS data structure with the ulItem field set to MCI_STATUS_POSITION to the Media Device Manager (MDM). Upon return, the ulReturn field of the MCI_STATUS_PARMS data structure contains the current position of the device in MMTIME units.

• When the Caption Creation Utility program receives the position value, it writes the time value and the line of text to the caption file. The caption file contains the same text as the text file, but each line in the caption file is preceded by the time in the audio file when that line of text should be displayed.


  ---
